Detail Information
Product Description

Detail Information
Color:	White / Black	Size:	17 / 19/ 22/ 32 Inch
Screen Brand:	LG/ SAMSUNG	Active Area:	344.232(H) *193.536(V)
High Light:	free standing digital signage , lcd digital display

Product Description

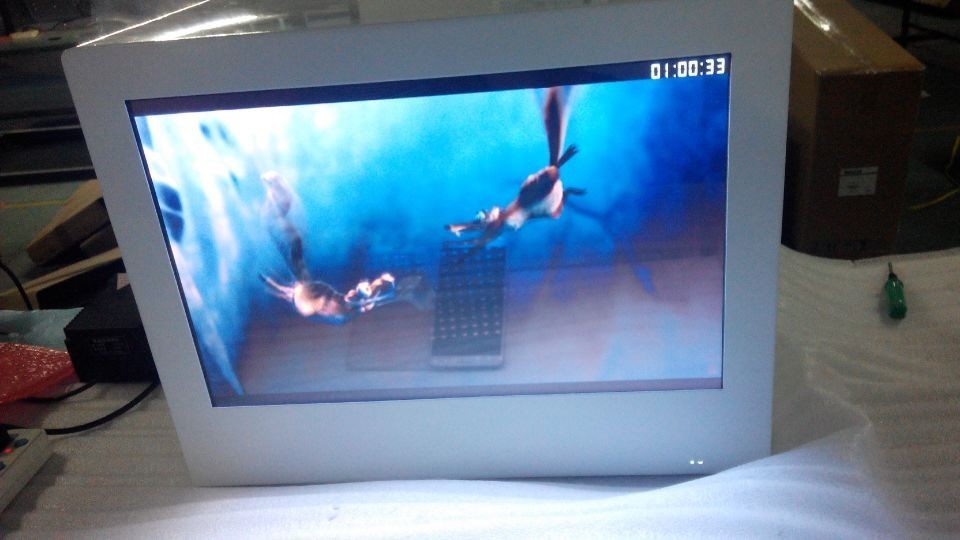

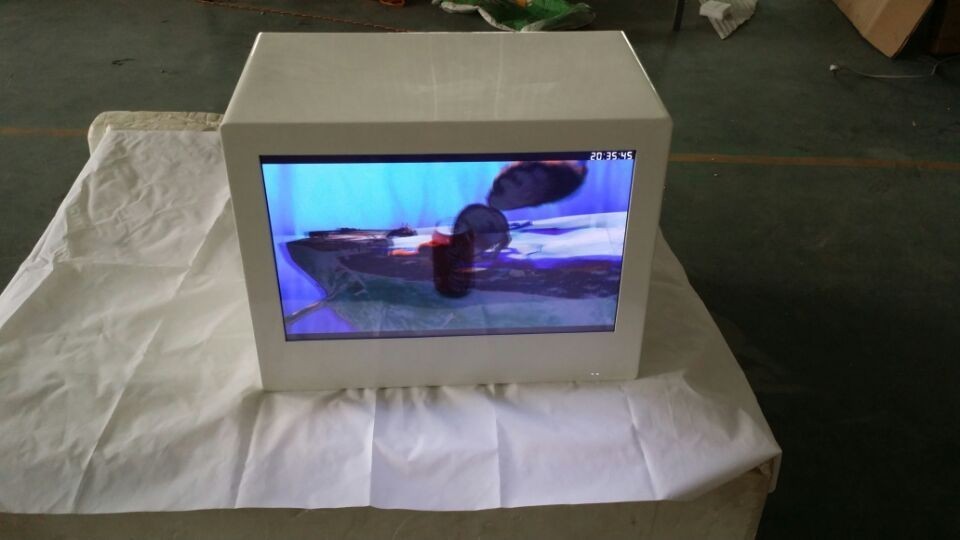

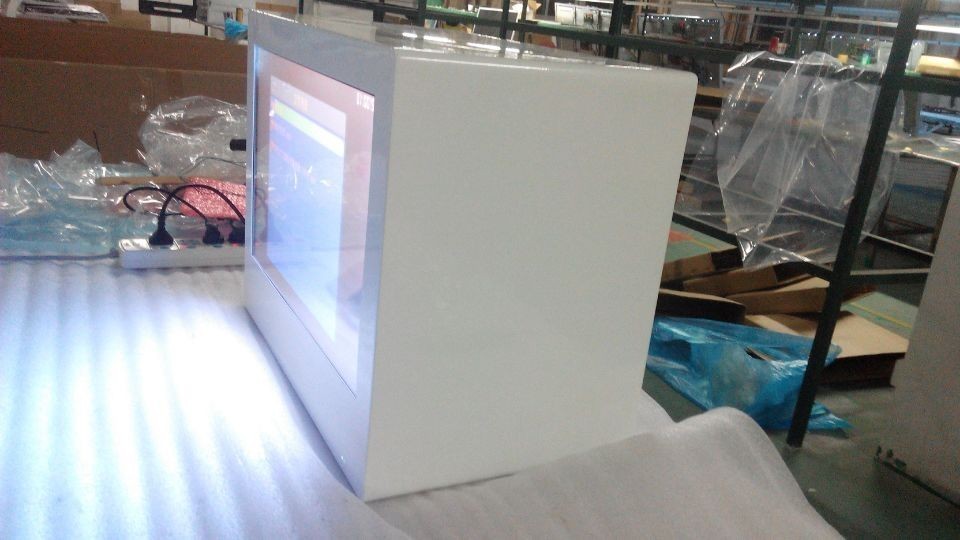

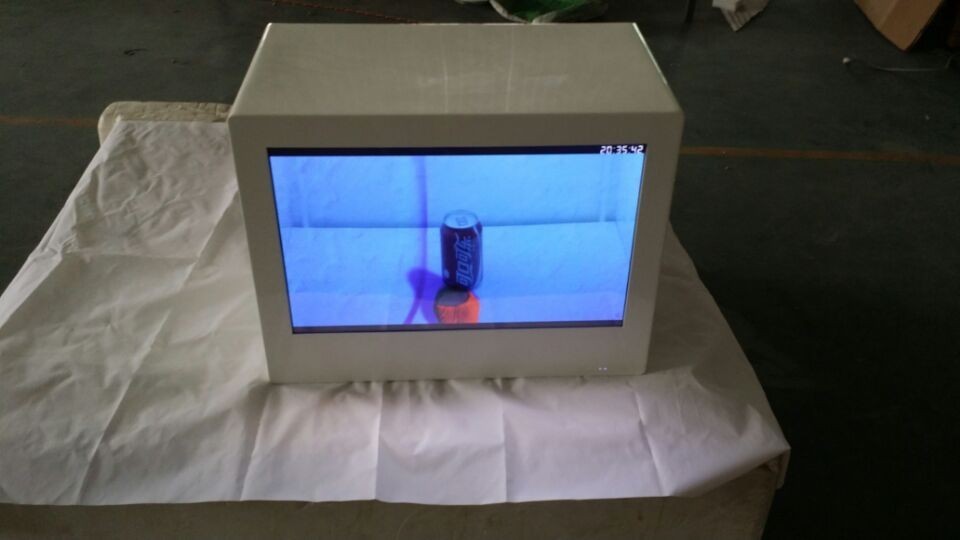

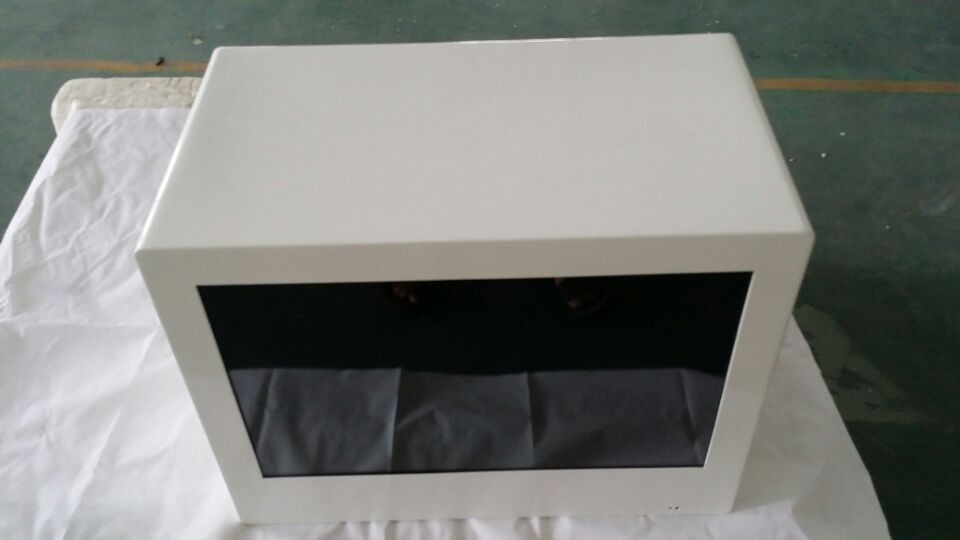

Stand Alone High Definition Display Monitor High Transmittance 22 Inch Transparent

Quick Detail:

1.22 Inch A Grade LG/Samsung/AUO/BOE transparent LCD panel

2. Wooden baking finish showcase

3. customized color

4. Stand alone version, support USB disk and SD Card play

5. High Difinition display

6. OEM is available

Description:

Transparent LCD Display: The inside exhibit can be seen while the pictures or vedios are displayed. It will strength cunstomer’s experience on product brand with the combination of dynamic information and the actual product display.

HT156WX1-100 is a color active matrix TFT LCD module using amorphous silicon TFT's
(Thin Film Transistors) as an active switching devices. This module has a 15.6 inch
diagonally measured active area with WXGA resolutions (1366 horizontal by 768 vertical
pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in
vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this
module is adapted for a low reflection and higher color type.

Applications:

Cooler Door,Indoor,Showcase

Supermarket, shopping mall

Specifications :

Item	Index
Size	22 inch
Brand	LG, Samsung,Chimei,BOE etc.
Type	MJK-A22T
Panel Resolution	1366(H) *768(V)
View Angle	89/89/89/89(L/R/U/D)
Light transmittance	72-82%
Color saturation	72%
Display Color	16．7M
Scan Frequency	60Hz
Brightness	500cd/m2
Contrast Ratio	5000:1
Response Time	8ms
Active Area	344.232(H) *193.536(V)
Support Audio/Video Coding Format	MEPG4(AVI, DIVX, XVID),MEPG2(DVD, VOB, mpeg), MEPG1(VCD, DAT, MPG),MP3,JPG ,BMP,GIF,PNG
Automatically Turn on/off	Set the on/off time automatically
Power Memory	Support program replaying from the setting time before the power failure
Slide Show	Support background music when playing picture
Interface Language	Support different languages(Chinese, English, etc.)
Play Log	Support the auto-save of all play records and the save time is adjustable
Play Time	Pictures’ playing time can be defined
Protect Function	With safety protection lock, it can prevent replacing CF card at randomly. Support CF card encryption and menu encryption
Scroll Caption	Support scrolling caption, effect index can be changed
Picture Play Mode	Support the set of a variety of image transition effects
File Category Play	Support disc repeat, single video file repeat, single picture file repeat, etc.
Speaker	2*8Ω2W
Calendar&Time	Support check calendar, adjust time and display it on the screen on/off
Installation	Support wall hanging horizontal or vertical
Support Memory Medium Type	Support memory medium type : CF, USB (SD card optional), update through USB
Power Protect	Protect type of hidden power switch
Dimension(LWH)&Net Weight	962.6mm585.7mm13mm & 16Kg
Power In& Power Consumption	AC 100-240V 50/60HZ 110W

Competitive advantages:

The inside exhibit can be seen while the pictures or videos are displayed on LCD screen. To attract customer's attention on product brand with the combination of dynamic information and the actual product display.

MJK exquisite Transparent Video Showcase can be used in many applications: Jewelry, Gem Stone, Watch, Wine bottle, Cosmetics, Perfume set, Digital Camera, IPad/Mac book, Hand bag, High heel, and Museum Craft, etc.

Tag:

Product Details:
Place of Origin:	china
Brand Name:	MJK
Certification:	CE,Rohs
Model Number:	MJK-A22T
Payment & Shipping Terms:
Minimum Order Quantity:	1pcs
Price:	Negotiate
Packaging Details:	Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time:	3-25days
Payment Terms:	T/T
Supply Ability:	5000pcs/Month
